Tehničke značajke:

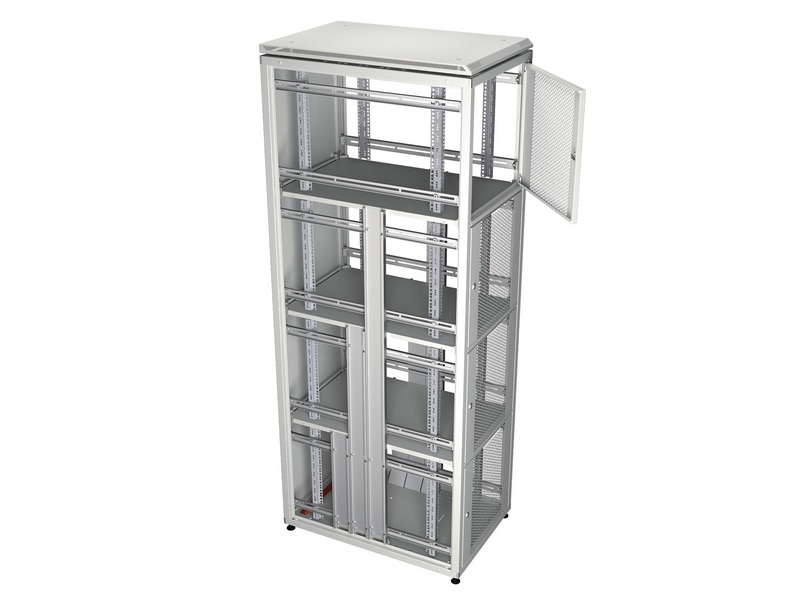

19" network cabinet according to DIN 41494 • Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated • 1, 2, 3 or 4 boxes for individual access • Every box with independent cable ducts left and right for cable entry from top or bottom • Inside front and rear 4 x 19" profiles per box (2 front, 2 rear), galvanised, step-less depth-adjustable • Numbering of height units at the profiles • Front- and rear doors steel, perforated, 1-part • Doors with 1-point turning handle, lockable, incl. profile half-cylinder acc. to DIN 18252 / EN 1303 • Profile half-cylinder exchangeable by customer (30/10 mm) • Door stop left and right-sided possible • Detachable side walls with 2 x latch locking (lock equal to door lock) • Side walls optional available perforated • Cabinets stackable side-by-side with and without side wall via baying set PRO-ANR01 • Roof and bottom with covered cutouts for cable entry (left/right) and for accommodation of fan unit PRO-LFD02BT.xx • Intermediate bottoms sealed to side walls • Internal earthing of all cabinet parts • Max. load 600 kg • Paint finish RAL7035, light grey / RAL9005, jet black • Protection degree IP20 • Included accessories: 1 x set of captive nuts (PU 20 pcs.), 4 x Leveling feet M12, 2 x key • Delivery in transport packaging on disposable pallet
Raspoloživost: na upit
