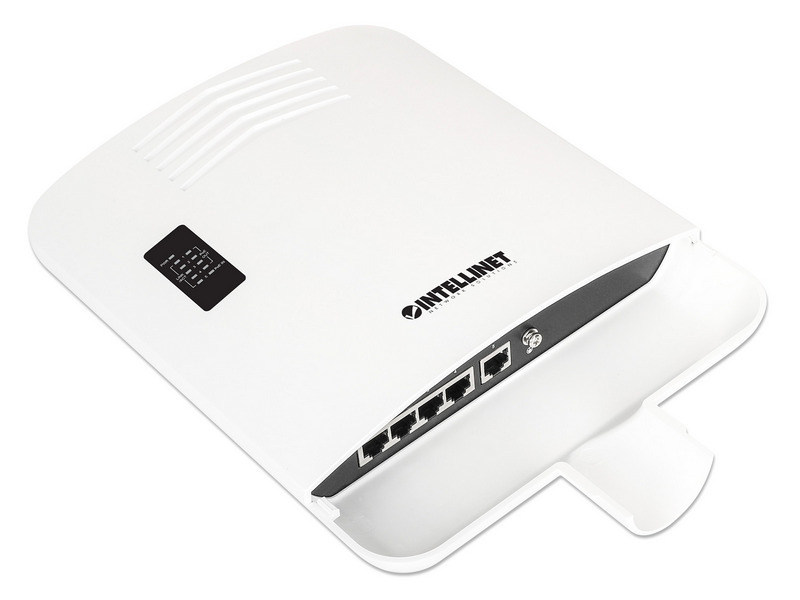

Aktivna mrežna oprema > Mrežni preklopnici > Industrijski preklopnici > Intellinet 509220 , Switch Unmanaged 5x10/100/1000T PoE Plus PD 90W (4 Port PoE+ Extender), Outdoor IP65

Tehničke značajke:
PoE-powered switch in a weatherproof housing, ideal for IP camera installations and other outdoor PoE applications • Supports up to 90 W power input from a IEEE 802.3bt PoE++ injector or switch for a PoE power budget up to 85 W • Provides up to four PoE network devices with power and data • IP65-rated, dustproof and waterproof, NEMA 4 • Suitable for extreme operating temperatures of -40 to 80°C • Doubles the connection distance between PoE source and device from 100 m to 200 m • Power output up to 30 watts per port • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras) • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection • PoE power budget of 25 W through IEEE 802.3at connection and 10.4 W through IEEE 802.3af connection • 10 Gbps switch fabric / switching capacity • 10/100/1000 auto-sensing ports that automatically detect optimal network speeds • Auto-MDIX and NWay auto-negotiation support on all RJ45 ports • Supports jumbo frames up to 9216 Bytes • Store and forward switching architecture • Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode • Supports 2k MAC address entries with Auto-learning and Auto-aging • Buffer memory of 2 Mbits • Grounding point to protect equipment from external electrical surges • PoE surge protection up to 4 kV in common mode and 2 kV in differential mode for all RJ45 ports • Bracket with ins

Detaljnije o artiklu


Raspoloživost: na upit
