Tehničke značajke:

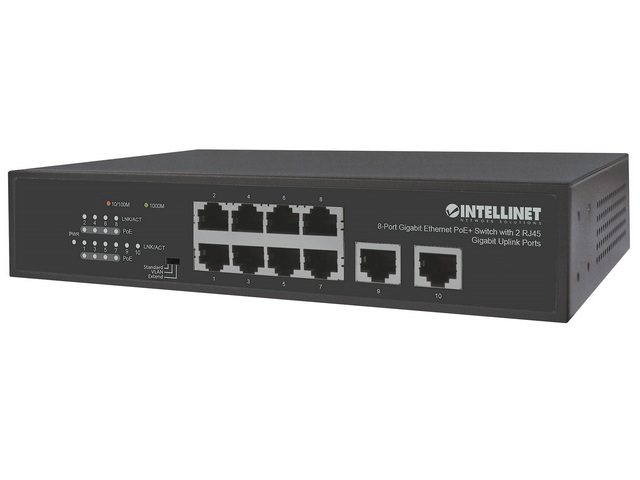

Provides power and data connection for up to eight PoE network devices • Two RJ45 Gigabit uplink ports • PoE power budget of 120 watts • Self-Healing Network - the Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic • IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports • Power output up to 32 watts per port • Manual PoE extend mode (reduces network speed and extends PoE support to 250 m) • Manual VLAN mode (allows ports through 8 to be isolated from each other) • 20 Gbps switch fabric • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras) • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection • Saves time and money by delivering data and power via existing network cables • 10/100/1000 auto-sensing ports automatically detect optimal network speeds • Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification • Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length • All RJ45 ports with Auto-MDIX (auto uplink) support • Store and forward switching architecture • IEEE 802.3x flow control for full duplex • Supports up to 8192 MAC address entries, Auto-Learning and Auto-Aging • Cooling fan for ventilation • Fully NDAA-compliant

Detaljnije o artiklu


Raspoloživost: na upit
