Pasivna mrežna oprema > Komunikacijski ormari i pribor > Industrijski ormari IP55, IP65 > ECOLAN 692724IP55.GR , Ormar samostojeći 24U - 800(š)x800(d)x1360(v) mm, kpl s podnožjem, sivi (RAL 7035), IP55

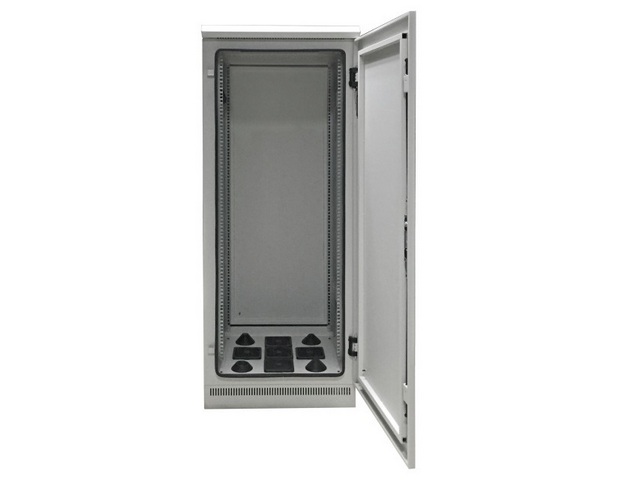

Ormar samostojeći 24U - 800(š)x800(d)x1360(v) mm, kpl s podnožjem, sivi (RAL 7035), IP55 , ECOLAN, 692724IP55.GR

Robna marka: ECOLAN
Part No.: 692724IP55.GR
Šifra: 3560
Jamstvo: 24 mj.
1.455,25 €
JMJ: KOM | MPC
-
+
Tehničke značajke:
19" Network cabinet according to DIN 41494 • Steel sheet housing with welded frame, completely pre-assembled • Pre-assembled plinth 100 mm • Inside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster • Numbering of rack units at the 19" profiles • Front an rear door steel, 1-part • Front and rear door with 3-point locking with turning handle, lockable • Door opening angle front and rear > 120° • Side walls not detachable • Inner roof pre-punched openings for fan units • Bottom prepared with air inlet filters and rubber grommets O 80 mm for cable entry • Internal earthing of all cabinet sections • Max. load 1000 kg • Paint finish RAL7035, light grey • Protection degree IP55 • Included accessories: 1 x set of captive nuts (PU 20 pcs.), pre-installed plinth, 2 x key • Delivery in transport packaging on disposable pallet

Detaljnije o artiklu


Raspoloživost: na upit
