Pasivna mrežna oprema > Komunikacijski ormari i pribor > Industrijski ormari IP55, IP65 > ECOLAN 691712IP55.2 , Ormar zidni 19" 1-djelni 12U - 600(š)x630(v)x600(d) mm, svjetlo sivi (RAL 7035), IP55

Ormar zidni 19" 1-djelni 12U - 600(š)x630(v)x600(d) mm, svjetlo sivi (RAL 7035), IP55 , ECOLAN, 691712IP55.2

Robna marka: ECOLAN
Part No.: 691712IP55.2
Šifra: 3417
Jamstvo: 12 mj.
768,10 €
JMJ: KOM | MPC
-
+
Tehničke značajke:

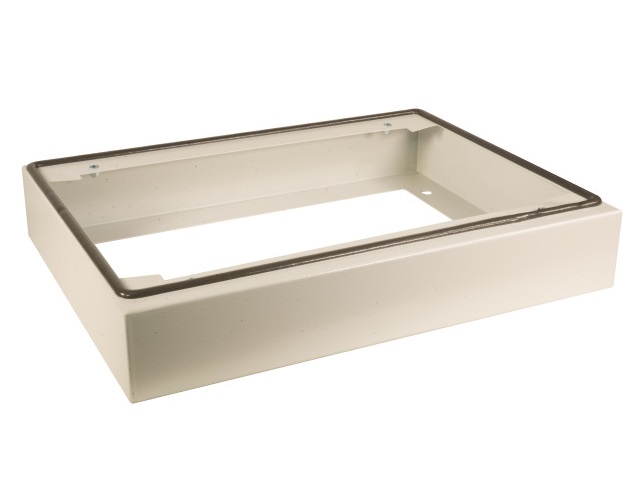

Steel sheet housing with welded frame, completely pre-assembled • Right- and left-sided metal protected air entries for fresh air supply • Sealings at roof and door for dust and water protection • Side walls not protected • Hinged roof, inner roof prepared for mounting of 2 x single fans Art.-No. 691664 • Bottom with PG glands 1 x PG48, 2 x PG21 and 3 x O 20 mm PVC cones • Inside front 2 x 19“ profile rails, galvanised • Front door steel reinforced with 3-point bar-locking • Cabinet parts inside completely grounded • Max. load 100 kg • With the plinths 691750WIP.x also usable as standing cabinet in indoor / outdoor area • Paint finish RAL7035, light grey • Protection degree IP55 acc. to EN60529 • Included accessories: 4 x wall bracket, 2 x key

Detaljnije o artiklu


Raspoloživost: na upit
