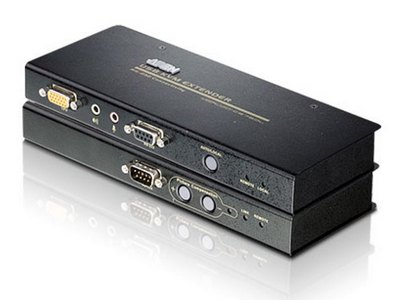

Periferna PC oprema > KVM oprema > KVM Extenderi > Aten CE750A , KVM Cat.5 Extender Set, USB-VGA + Audio + Serial Port, do 200 m, 19" kit

Tehničke značajke:
Local and Remote Units connect at distances up to 200 m using Cat 5e cable • Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles • Built-in ASIC for greater reliability and compatibility • USB Keyboard and USB Mouse Ports • RS-232 serial ports - allows you to connect to a serial terminal for configuration (Local Unit), or serial devices such as touchscreens and barcode scanners (Remote Unit) • Supports stereo speakers and stereo microphone USB overcurrent detection and prevention • Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection • Adjustable gain control - automatically and manually adjusts signal strength to compensate for distance • High resolution video - up to 1920 x 1200 @ 60 Hz (30m),1600 x 1200 @ 60 Hz (150m),1280 x 1024 @ 60 Hz (200m) • Supports Wide Screen formats • Supports VGA, SVGA, SXGA (1280 x 1024) and UXGA (1600 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B • Hot pluggable • Rack mountable • Easy to install – no software required, simply connect cables to the devices • Supports wide screen formats

Detaljnije o artiklu


Raspoloživost: na upit
